Ninebot NEB1002-H1
Jump to navigation
Jump to search

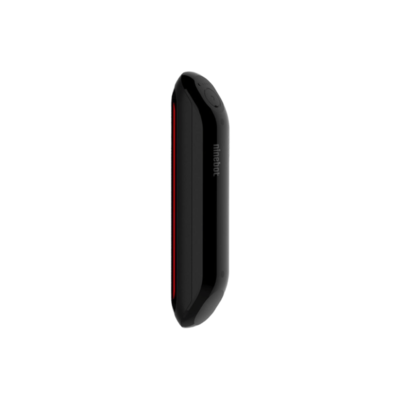

The Ninebot NEB1002-H1 is the optional external battery intended for the Ninebot ES3/ES3 Plus and Ninebot ES4 scooters.
To view other battery models, go to the Battery Model Index.
It runs on the same firmware and pack layout as the internal battery, the Ninebot NEB1002-H.
Specs
Original specs via Segway.
| Rated Capacity | 5.2Ah/5200mAh |
| Rated Power | 187Wh |
| Battery Voltage | 36 VDC |
| Charging Voltage | 42 VDC |
| Charging Temperature | 32–104°F (0–40°C) |
| Range* | 25km |
| Cells Used | EVE / FAR EAST |
| Cell Size | 18650 |
BMS Firmware
This battery is based on the STM8 family of MCU and is compatible with standard ESX BMS Firmware.
The specific chip is the STM8L151K6T6.
You can find more info about this firmware by viewing the Ninebot ESX STM8 BMS Firmware Index.
- Ninebot ESX BMS 1.2.2
- Ninebot ESX BMS 1.2.5
- Ninebot ESX BMS 1.3.6
- Ninebot ESX BMS 1.4.1
- Ninebot ESX BMS 1.4.6
- Ninebot ESX BMS 1.4.9
- Ninebot ESX BMS 1.5.8
- Ninebot ESX BMS 1.6.0
