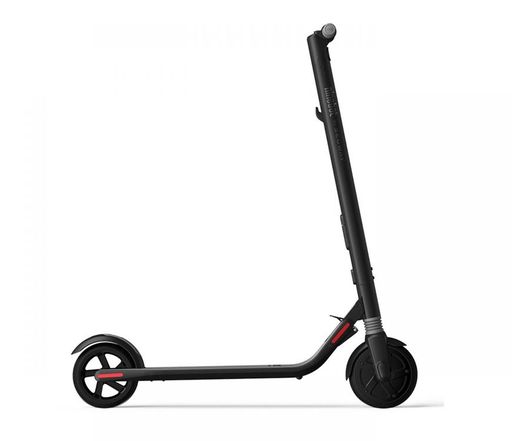

Ninebot ES1
The Ninebot ES1 is a budget scooter made by Ninebot.
It is the first of the "KickScooter" series also known as the KS or ES(Electric Scooter) series.
Attaching a NEB1002-H1 battery to an ES1 makes it into a Ninebot ES3.
This scooter was superseded by the Ninebot ES2.
![[1]](https://static.segway.com/pub/media/catalog/product/cache/92222f9d2af9be9f0c7a6d1d79f6b6e0/k/s/ks1-p3_1_1.jpg){kind=link}
The main page for guides relating to this model is at Ninebot ESX Stuff.
Specifications
Original specs via Segway.
| Dimensions | Unfolded: Approx. 40 × 17 × 45 in (102 × 43 × 113 cm) Folded: Approx. 45 × 17 × 16 in (113 × 43 × 40 cm) |
| Net Weight | Approx. 24.9 lbs (11.3 kg) |
| Rider Weight | 55–220 lbs (25–100 kg) |
| Max Speed | Approx. 12.4 mph (20 km/h) |
| Advertised Range | Approx. 15.5 miles (20 km) |
| Max Slope | Approx. 10% |
| Traversable Terrain | Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) |
| Operating Temperature | 14–104°F (-10–40°C) |
| Storage Temperature | -4–122°F (-20–50°C) |
| IP Rating | IP54 |
| Charge Time | Approx. 3.5h |
| Battery Voltage | 36 VDC |
| Charging Voltage | 42 VDC |
| Charging Temperature | 32–104°F (0–40°C) |
| Battery Capacity | 5200 mAh / 187 Wh |
| Motor Power | 250W |
| Charger Power | 71W |
| Charger Current | 1.7A |
| Shocks | Front only |
Manuals
Modding
This model has custom firmware support from ScooterHacking.
The Custom Firmware Generator can be found here.
Once converted, CFW can be generated and flashed using the guides below:
CFW usually refers to custom firmware for the ESC or DRV, though there are some CFW versions for BLE and BMS.
ScooterHacking's SHFW also supports this model.
ScooterHacking features more in-depth information on this model on their ESX Wiki Page.
