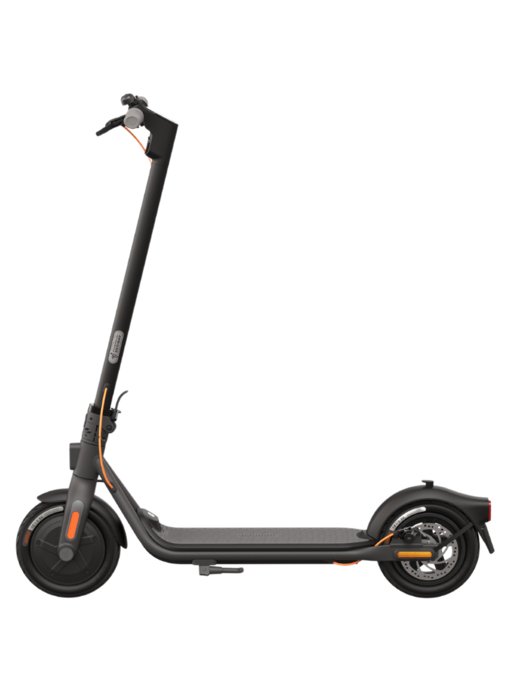

The Ninebot F30E is a budget scooter made by Ninebot.
It is the European regional variant, with others including the Ninebot F30, Ninebot F30D, Ninebot F30S.
It is the lower end of the Ninebot F Series, with upgraded versions available such as the Ninebot F40 and Ninebot F65.
Specs
Original specs via Segway.
| Dimensions | Unfolded: Approx. 45 x 18.9 x 45.7 in (1143 x 480 x 1160 mm) Folded: Approx. 45 x 18.9 x 19.5 in (1143 x 480 x 495 mm) |
| Net Weight | Approx. 33.3 lbs (15.1 kg) |
| Rider Weight | 66-260 lbs (30-100 kg) |
| Max Speed | Approx. 15.5 mph (25 km/h) |
| Advertised Range | Approx. 18.6 miles (30 km) |
| Max Slope | Approx. 15% |
| Tires | 10-inch pneumatic tires |
| IP Rating | IPX5 |
| Operating Temperature | 14–104°F (-10–40°C) |
| Storage Temperature | -4–122°F (-20–50°C) |
| Battery Voltage | 36 VDC |
| Charging Voltage | 42 VDC |
| Charging Temperature | 32–104°F (0–40°C) |
| Battery Capacity | 10200mAh / 367Wh (Hard to tell whether this is true or not, the F30 claims a smaller battery but the same range) |
| Motor Power | 300W |
| Charger Power | 70W |
| Charger Current | 1.7A |
| Shocks | None |
| Brakes | Front Electric, Rear Disc |
ScooterHacking features more info on their Wiki Page.
Manuals
Modding
ScooterHacking's SHFW supports this model.
ScooterHacking features more in-depth information on this model on their F-Series Wiki Page.
