The Ninebot F30 is a budget scooter made by Ninebot.

It is the American/Worldwide regional variant, with others including the Ninebot F30E, Ninebot F30D, Ninebot F30S.

It is the lower end of the Ninebot F Series, with upgraded versions available such as the Ninebot F40 and Ninebot F65.

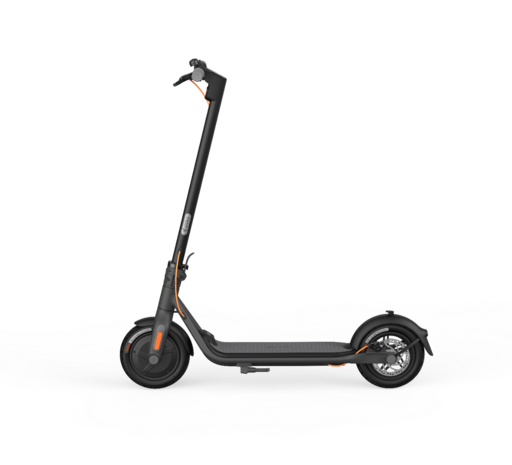

The Ninebot F30 via Segway[1].


Original specs via Segway.

Ninebot F30
Dimensions Unfolded: Approx. 45 x 18.9 x 45.7 in (1143 x 480 x 1160 mm)
Folded: Approx. 45 x 18.9 x 19.5 in (1143 x 480 x 495 mm)
Net Weight Approx. 33.3 lbs (15.1 kg)
Rider Weight 66-260 lbs (30-100 kg)
Max Speed Approx. 15.5 mph (25 km/h)
Advertised Range Approx. 18.6 miles (30 km)
Max Slope Approx. 15%
Tires 10-inch pneumatic tires
IP Rating IPX5
Operating Temperature 14–104°F (-10–40°C)
Storage Temperature -4–122°F (-20–50°C)
Battery Voltage 36 VDC
Charging Voltage 42 VDC
Charging Temperature 32–104°F (0–40°C)
Battery Capacity 7650mAh / 275 Wh
Motor Power 300W
Charger Power 70W
Charger Current 1.7A
Shocks None
Brakes Front Electric, Rear Disc

ScooterHacking features more info on their Wiki Page.



ScooterHacking's SHFW supports this model.

ScooterHacking features more in-depth information on this model on their F-Series Wiki Page.

Serial Prefixes
