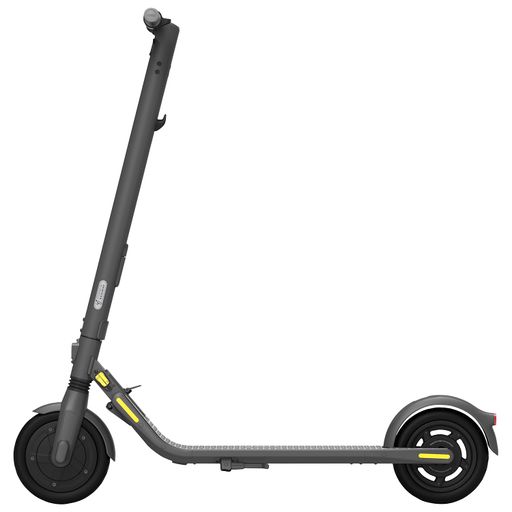

The Ninebot E25 is a budget scooter made by Ninebot.
It is the American regional variant of the Ninebot E22.
Other regional variations exist such as the Ninebot E25E, and Ninebot E25D.
It is an upgrade over the Ninebot E22 and has an upgraded version, the Ninebot E45.
It is a part of the Ninebot E Series.
Specs
Original specs via Segway.
| Dimensions | Unfolded: 45.7in x 16.5in x46.1in (116cm x 42cm x 117cm) Folded: 46.9in x 16.5in x 14.2in (119cm x 42cm x 36cm) |
| Net Weight | Approx. 31.7 lbs (14.4 kg) |
| Rider Weight | 55–220 lbs (25–100 kg) |
| Max Speed | Approx. 17.4 mph (28km/h) |
| Advertised Range | Approx. 15.5 miles (25km) |
| Max Slope | Approx. 15% |
| Tire Size | 9" |
| Traversable Terrain | Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) |
| Operating Temperature | 14–104°F (-10–40°C) |
| Storage Temperature | -4–122°F (-20–50°C) |
| Battery Voltage | 36 VDC |
| Charging Voltage | 42 VDC |
| Charging Temperature | 32–104°F (0–40°C) |
| Battery Capacity | 5960 mAh / 215 Wh |
| Motor Power | 300W |
| Charger Power | 71W |
| Charger Current | 1.7A |
| Shocks | None |
Manuals
Modding
ScooterHacking's SHFW supports this model.
ScooterHacking features more in-depth information on this model on their E-Series Wiki Page.
Serial Prefixes
- N2GV - Ninebot E25
