The Ninebot E22 is a budget scooter made by Ninebot.

Regional variations exist such as the Ninebot E22E, and Ninebot E22D.

There are also upgraded versions, such as the Ninebot E25 and Ninebot E45.

It is a part of the Ninebot E Series.

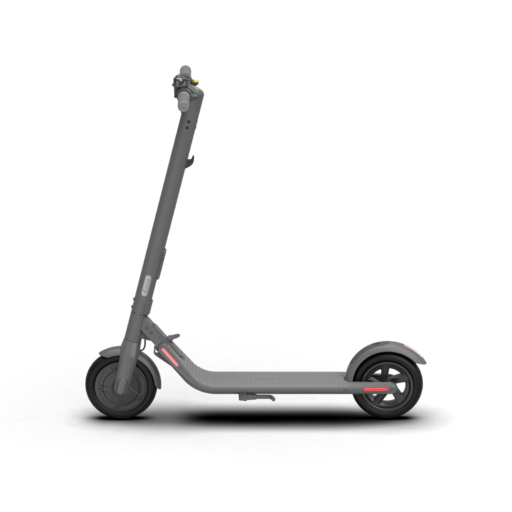

The Ninebot E22 via Segway[1].

Specs

Original specs via Segway.

Ninebot E22
Dimensions Unfolded: 42.9x16.5x44.1 in (109×42×112 cm)
Folded: 44.5x16.5x14.2 in (113×42×36 cm)
Net Weight Approx. 29.8 lbs (13.5 kg)
Rider Weight 55–220 lbs (25–100 kg)
Max Speed 12.4 mph (20km/h)
Typical Range 13.7 miles (22km)
Max Slope 15%
Traversable Terrain asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
Operating Temperature 14–104°F (-10–40°C)
Storage Temperature -4–122°F (-20–50°C)
IP Rating IPX4
Charge Time Approx. 3.5h
Battery Voltage 36 VDC
Charging Voltage 42 VDC
Charging Temperature 32–104°F (0–40°C)
Battery Capacity 5100 mAh / 184 Wh
Motor Power 300 W
Charger Power 71W
Charger Current 1.7A
Shocks None
Brake Light LED Rear Light
Riding Modes Speed limit mode, Standard mode and Sport mode
Tires Dual Density Tires, 9in

Manuals

Modding

ScooterHacking's SHFW supports this model.

ScooterHacking features more in-depth information on this model on their E-Series Wiki Page.

To change the region for a non CFW speed unlock, follow ScooterHacking's Guide.

Serial Prefixes

  • N2GD - Ninebot E22
