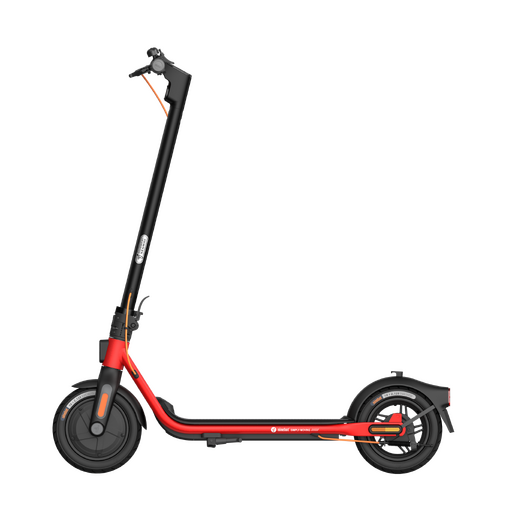

The Ninebot D28U is a budget scooter made by Ninebot.
It is the middle end of the Ninebot D Series, with the larger model being the Ninebot D38U, while the smaller model is the Ninebot D18U.
The U signifies this as a regional version, with the others being the Ninebot D28E and Ninebot D28J.
Specifications
Original specs via Segway.
| Dimensions | Unfolded: 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 in) Folded: 44.5 × 16.5 × 14.2 in (113 × 42 × 36 cm) |
| Net Weight | Approx. 15.4kg |
| Rider Weight (Payload) | 30-120kg |
| Max Speed | 25km/h (15.5mph) |
| Typical Range | 28km (17.4 miles) |
| Max Slope | 8.5° / 15% |
| Traversable Terrain | Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) |
| Operating Temperature | 14–104°F (-10–40°C) |
| Storage Temperature | 14–122°F (-10–50°C) |
| IP Rating | IPX5 |
| Charge Time | Approx. 5h |
| Battery Voltage | 36 VDC |
| Charging Voltage | 42 VDC |
| Charging Temperature | 32–104°F (0–40°C) |
| Battery Capacity | 275Wh |
| Motor Power | 600W |
| Charger Power | 71W |
| Charger Current | 1.7A |
| Shocks | None |
| Brake | Front wheel electronic brake + rear wheel drum brake |
| Tire Type | 10-inch pneumatic tires |
| Brake Light | LED Rear Light |
| Riding Modes | Speed limit mode, Standard mode and Sport mode |
ScooterHacking features more info on their Wiki Page.
Modding
This model does not have any custom firmware support from ScooterHacking at the current moment.
