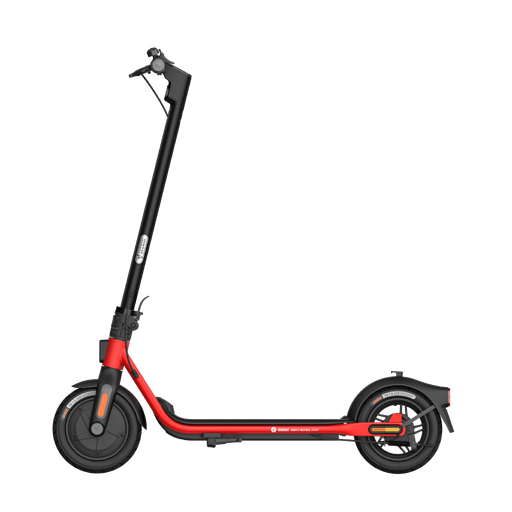

The Ninebot D18U is a budget scooter made by Ninebot.
It is the lowest end of the Ninebot D Series, with the two larger models being the Ninebot D28U, and Ninebot D38U.
Specifications
Original specs via Segway.
| Dimensions | 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 in) |
| Net Weight | Approx. 14.8 kg (32.6 lbs) |
| Rider Weight (Payload) | 30-100kg (66-220 lbs) |
| Max Speed | 25 km/h (15.5 mph) |
| Typical Range | 18 km (11.2 miles) |
| Max Slope | 5.7° / 10% (75kg) |
| Traversable Terrain | Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) |
| Operating Temperature | 14–104°F (-10–40°C) |
| Storage Temperature | 14–122°F (-10–50°C) |
| IP Rating | IPX5 |
| Charge Time | Approx. 3.5h |
| Battery Voltage | 36 VDC |
| Charging Voltage | 42 VDC |
| Charging Temperature | 32–104°F (0–40°C) |
| Battery Capacity | 183 Wh |
| Motor Power | 500W |
| Brake | Front wheel electronic brake + rear wheel drum brake |
| Tire Type | 10-inch pneumatic tires |
ScooterHacking features more info on their Wiki Page.
Modding
This model does not have any custom firmware support from ScooterHacking at the current moment.
