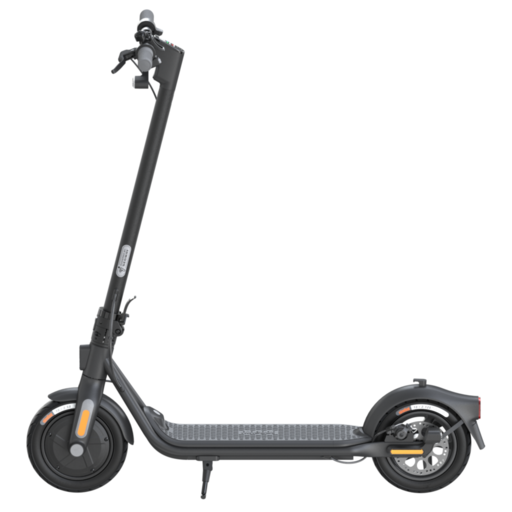

Ninebot F25I
Jump to navigation
Jump to search
The Ninebot F25I is a budget scooter made by Ninebot.
It appears to be the second-gen 'improved' the European regional variant of the Ninebot F25E, with another being the Ninebot F40I.
It has better hill climbing and turn signals.
It is the lower end of the Ninebot F Series, with upgraded versions available such as the Ninebot F40I and Ninebot F65E.
Specs
Original specs via Segway.
| Dimensions | Unfolded: Approx. 45 x 18.9 x 45.7 in (1143 x 480 x 1160 mm) Folded: Approx. 45 x 18.9 x 19.5 in (1143 x 480 x 495 mm) |
| Net Weight | Approx. 34.1 lbs (15.5 kg) |
| Rider Weight | 66-260 lbs (30-100 kg) |
| Max Speed | Approx. 15.5 mph (25 km/h) |
| Advertised Range | Approx. 15.5 miles (25 km) |
| Max Slope | Approx. 15% |
| Tire Size | 10" |
| IP Rating | IPX5 |
| Operating Temperature | 14–104°F (-10–40°C) |
| Storage Temperature | -4–122°F (-20–50°C) |
| Battery Voltage | 36 VDC |
| Charging Voltage | 42 VDC |
| Charging Temperature | 32–104°F (0–40°C) |
| Battery Capacity | 7650 mAh / 275 Wh |
| Motor Power | 300W |
| Charger Power | 70W |
| Charger Current | 1.7A |
| Shocks | None |
| Brakes | Front Electric, Rear Disc |
| Indicators | Front and Rear |
ScooterHacking features more info on their Wiki Page.
Manuals
Modding
ScooterHacking's SHFW supports this model.
ScooterHacking features more in-depth information on this model on their F-Series Wiki Page.
