Ninebot F20D
Jump to navigation
Jump to search

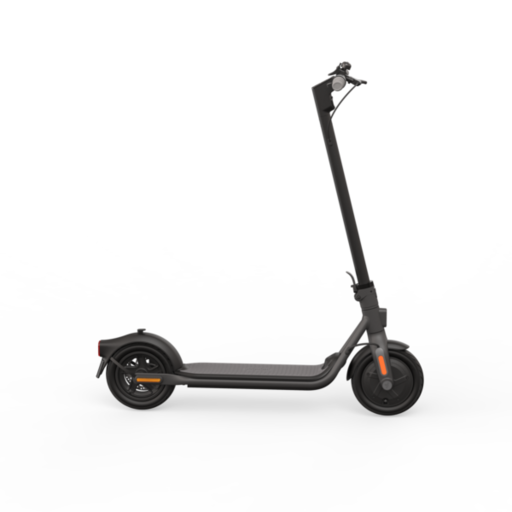

The Ninebot F20D is a budget scooter made by Ninebot.
Regional variations exist such as the Ninebot F20A.
It is the lowest end of the Ninebot F Series, with upgraded versions available such as the Ninebot F30D, Ninebot F40D, and Ninebot F65D.
Specs
Original specs via Segway.
| Dimensions | Unfolded: 42.9in x 16.5in x 44.1in (109cm x 42cm x 112cm) Folded: 44.5in x 16.5in x 14.2in (113cm x 42cm x 36cm) |
| Net Weight | Approx. 35.2 lbs (16 kg) |
| Rider Weight | 220 lbs (100 kg) |
| Max Speed | Approx. 12.4 mph (20km/h) |
| Advertised Range | Approx. 12.4 miles (20km) |
| Max Slope | Approx. 10% |
| Tire Size | 10" |
| Operating Temperature | 14–104°F (-10–40°C) |
| Storage Temperature | -4–122°F (-20–50°C) |
| Battery Voltage | 36 VDC |
| Charging Voltage | 42 VDC |
| Charging Temperature | 32–104°F (0–40°C) |
| Battery Capacity | 5100 mAh / 183 Wh |
| Motor Power | 250W |
| Charger Power | 71W |
| Charger Current | 1.7A |
| Shocks | None |
| Brakes | Front Electric, Rear Disc |
ScooterHacking features more info on their Wiki Page.
Manuals
Modding
ScooterHacking's SHFW supports this model.
ScooterHacking features more in-depth information on this model on their F-Series Wiki Page.
Serial Prefixes
- N5GB - Ninebot F20D
