Ninebot E2 Plus
Jump to navigation
Jump to search

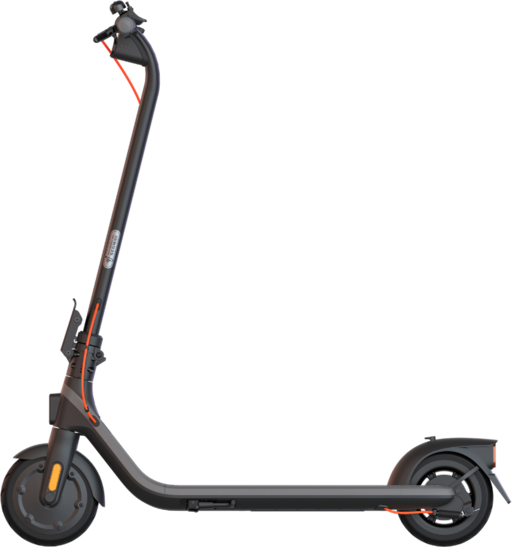

The Ninebot E2 Plus is the upgraded version of the Ninebot E2 by Ninebot.
It is a part of the Ninebot E Series.
Specs
Original specs via Segway.
| Dimensions | Unfolded: 42.1 × 17.5 × 44.9 in (1070 × 445 × 1140 mm) Folded: 42.1 × 17.5 × 19.8 in (1070 × 445 × 504 mm) |
| Net Weight | Approx. 31.7 lbs (14.4 kg) |
| Rider Weight | 55–198 lbs (25–90kg) |
| Max Speed | Approx. 15.5 mph (20km/h) |
| Advertised Range | Approx. 15.5 miles (25km) |
| Max Slope | Approx. 12% |
| IP Rating | IPX4 (Vehicle) IPX6 (Battery Pack) |
| Tires | 8.1" inner hollow shock-absorbing tires |
| Traversable Terrain | Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) |
| Operating Temperature | 14–104°F (-10–40°C) |
| Storage Temperature | -4–122°F (-20–50°C) |
| Battery Voltage | 21.6 VDC |
| Charging Voltage | 25.2 VDC |
| Charging Temperature | 32–104°F (0–40°C) |
| Battery Capacity | 10200 mAh / 220 Wh |
| Motor Power | 300W |
| Max Power | 500W |
| Charger Power | 36.3W |
| Charger Current | 1.5A |
| Shocks | None |
Manuals
This version uses the same manual as the Ninebot E2.
Modding
As of right now, it is not known whether ScooterHacking supports this model.
ScooterHacking features more in-depth information on this model on their E-Series Wiki Page.
