Ninebot D38E
Jump to navigation
Jump to search

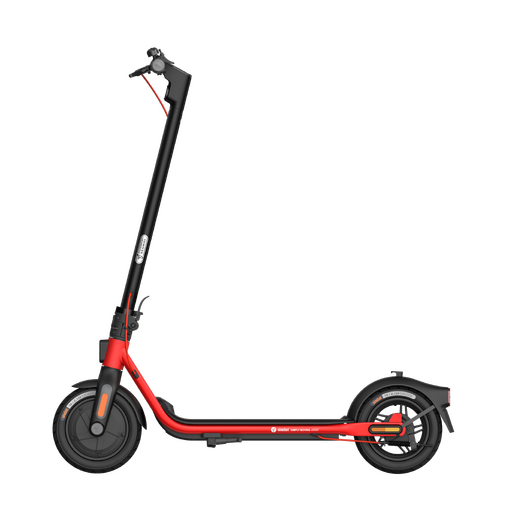

The Ninebot D38E is a budget scooter made by Ninebot.
It is the high end of the Ninebot D Series, with the two smaller models model being the Ninebot D28E and the Ninebot D18E.
The E denotes that this is a regional variation for the European region.
Other regional variations include the Ninebot D38U and Ninebot D38D.
Specifications
Original specs via Segway.
| Dimensions | Unfolded: 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 in) |
| Net Weight | Approx. 16.3 kg (35.9 lbs) |
| Rider Weight (Payload) | 30-120kg (66-265 lbs) |
| Max Speed | 25 km/h (15.5 mph) |
| Typical Range | 38 km (23.6 miles) |
| Max Slope | 11.3° / 20% |
| Traversable Terrain | Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) |
| Operating Temperature | 14–104°F (-10–40°C) |
| Storage Temperature | 14–122°F (-10–50°C) |
| IP Rating | IPX5 |
| Charge Time | Approx. 6.5h |
| Battery Voltage | 36 VDC |
| Charging Voltage | 42 VDC |
| Charging Temperature | 32–104°F (0–40°C) |
| Battery Capacity | 367 Wh |
| Motor Power | 700 W |
| Charger Power | 71W |
| Charger Current | 1.7A |
| Shocks | None |
| Brake | Front wheel electronic brake + rear wheel drum brake |
| Tire Type | 10-inch pneumatic tires |
ScooterHacking features more info on their Wiki Page.
Modding
This model does not have any custom firmware support from ScooterHacking at the current moment.
