The Ninebot NEF1001-X is the second gen internal battery intended for the Ninebot T15 scooter.
It has an upgraded capacity over the first gen Ninebot NEF1001-T.
For other models, visit Battery Models.
Specs
| Rated Capacity | 4.6Ah/4650mAh |
| Rated Power | 167Wh |
| Battery Voltage | 36 VDC |
| Charging Voltage | 42 VDC |
| Charging Temperature | 32-104°F (0-40°C) |
| Range* | Approx. 7.5 miles (12km) |
| Ninebot Part Number | AB.00.0018.75 |

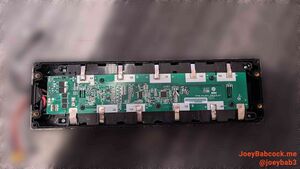

Internal Photos
These teardown photos are generously provided by Discord user KITTENBEAR.
BMS Firmware
Serial Prefixes
- BCAG - Ninebot NEF1001-X battery
- PRB01 - Ninebot NEF1001-X pcb
